CHASING Water Sampler

Description

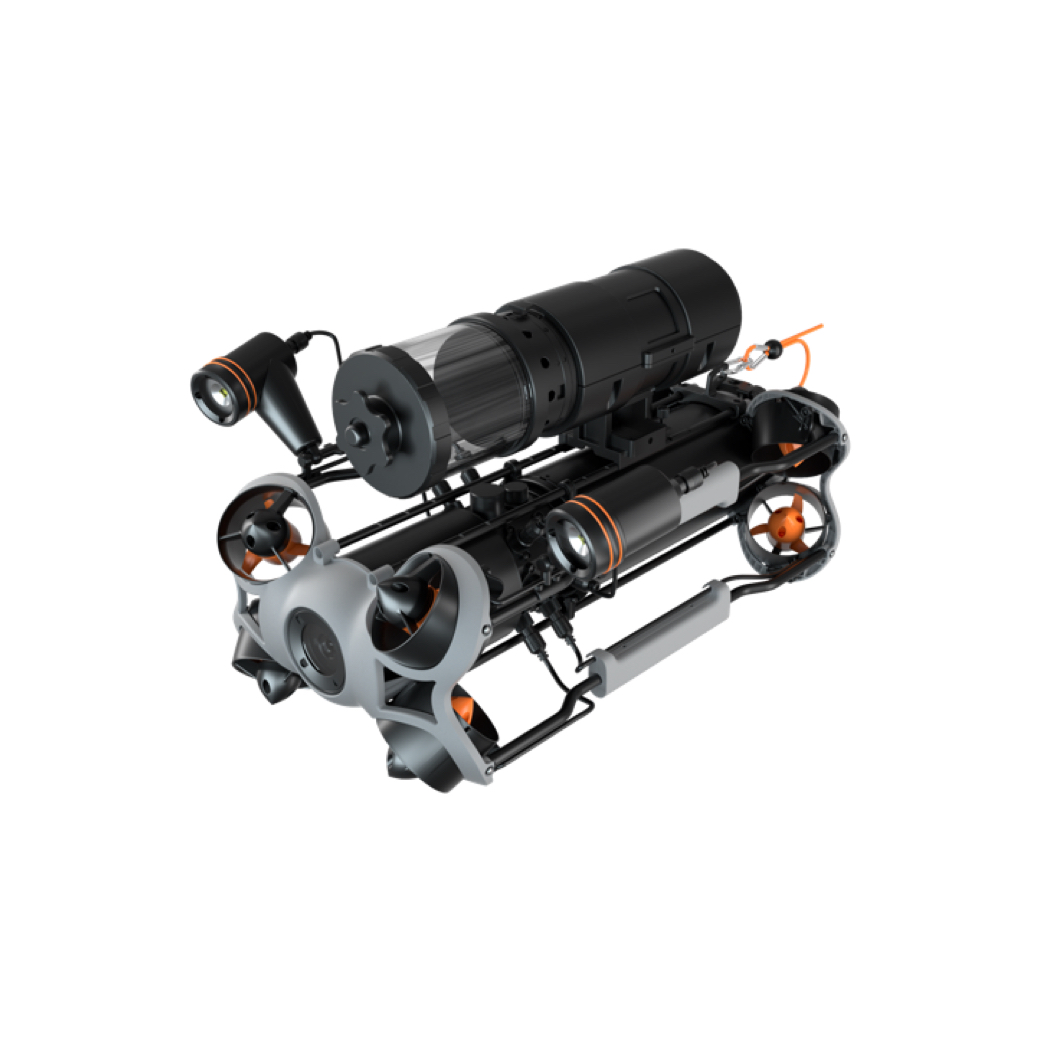

The CHASING Water Sampler is a high-performance underwater sampling device designed to integrate seamlessly with the CHASING M2 Pro Max ROV. Ideal for researchers, environmental agencies, and marine professionals, this sampler supports stratified spot sampling at depths ranging from 0 to 200 meters, delivering accurate and efficient water collection in a wide range of aquatic environments.

Key Features of the CHASING Water Sampler

Accurate Stratified Spot Sampling (0–200m)

The CHASING Water Sampler enables precise sampling at specific depths, thanks to the ROV’s stable hovering capability. It is designed to meet the needs of detailed water quality analysis and environmental monitoring.

Quick and Efficient Water Collection

With motorized suction, the CHASING Water Sampler can collect 500ml of water in just 8 seconds. This high-speed performance boosts field efficiency and minimizes ROV operation time.

500ml Capacity for Multiple Analyses

Each collection yields 500ml of water, making it suitable for multiple tests from a single sampling event. This reduces the number of dives required and improves workflow.

Leak-Proof Design for Sample Integrity

Tested through thousands of sampling operations, the CHASING Water Sampler features an advanced sealing mechanism that ensures no water leakage, preserving the accuracy and reliability of the collected samples.

Eco-Friendly and Certified Construction

Made from environmentally safe materials including 6061 aluminum alloy, POM, and PMMA, the CHASING Water Sampler is ROHS certified and built to prevent pollution of the sampled waters.

Easy Bottle Replacement for Continuous Use

The modular design includes replaceable sampling bottles, allowing fast transitions between sampling tasks. This feature supports extended operations and maintains sample purity.

CHASING Water Sampler Technical Specifications

Dimensions: φ106 x 375 mm
Air Weight: 2.2 kg
Water Sampling Capacity: 500 ml
Pressure Withstand Depth: 200 meters
Operating Voltage: DC 24V
Operating Temperature: -10°C to 45°C
