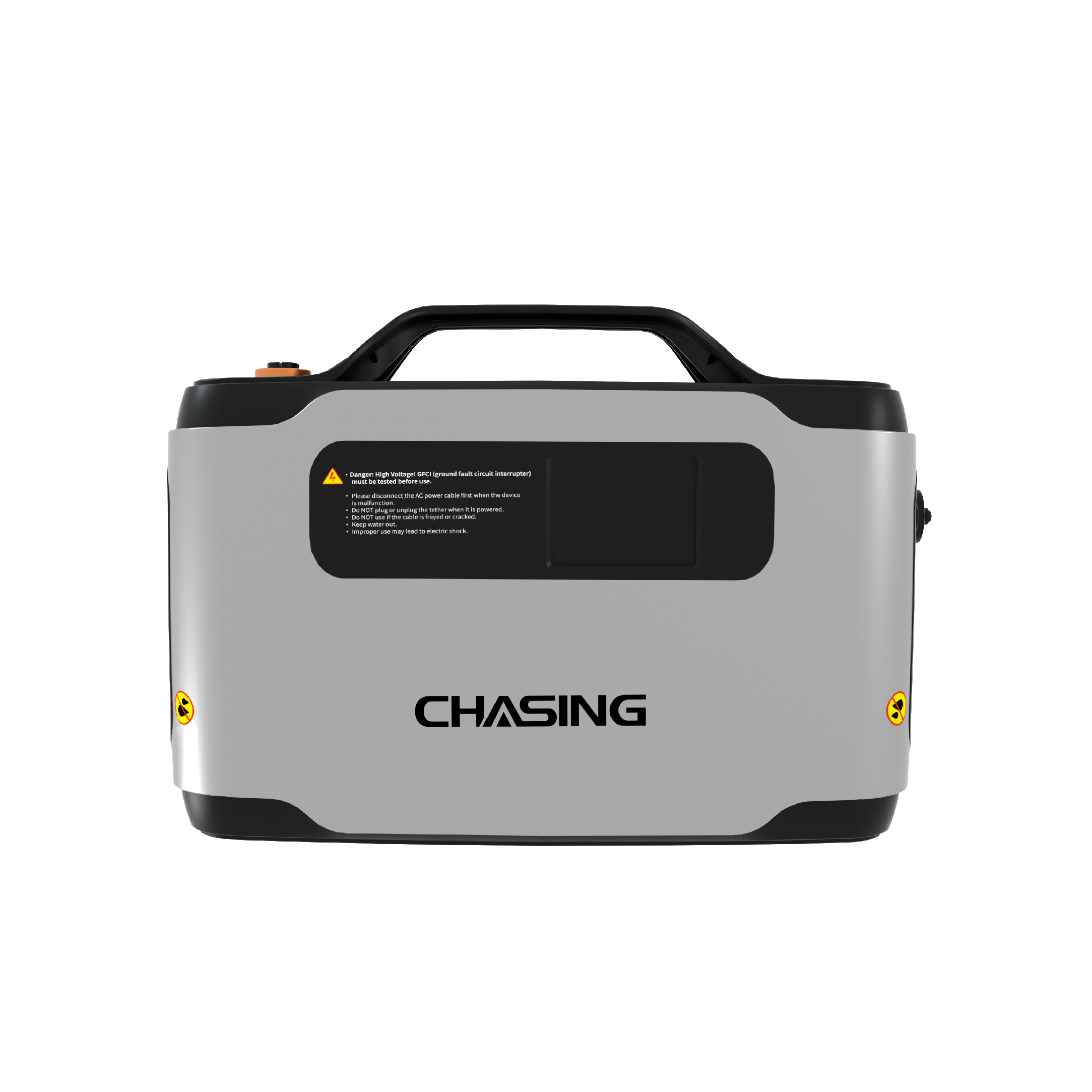

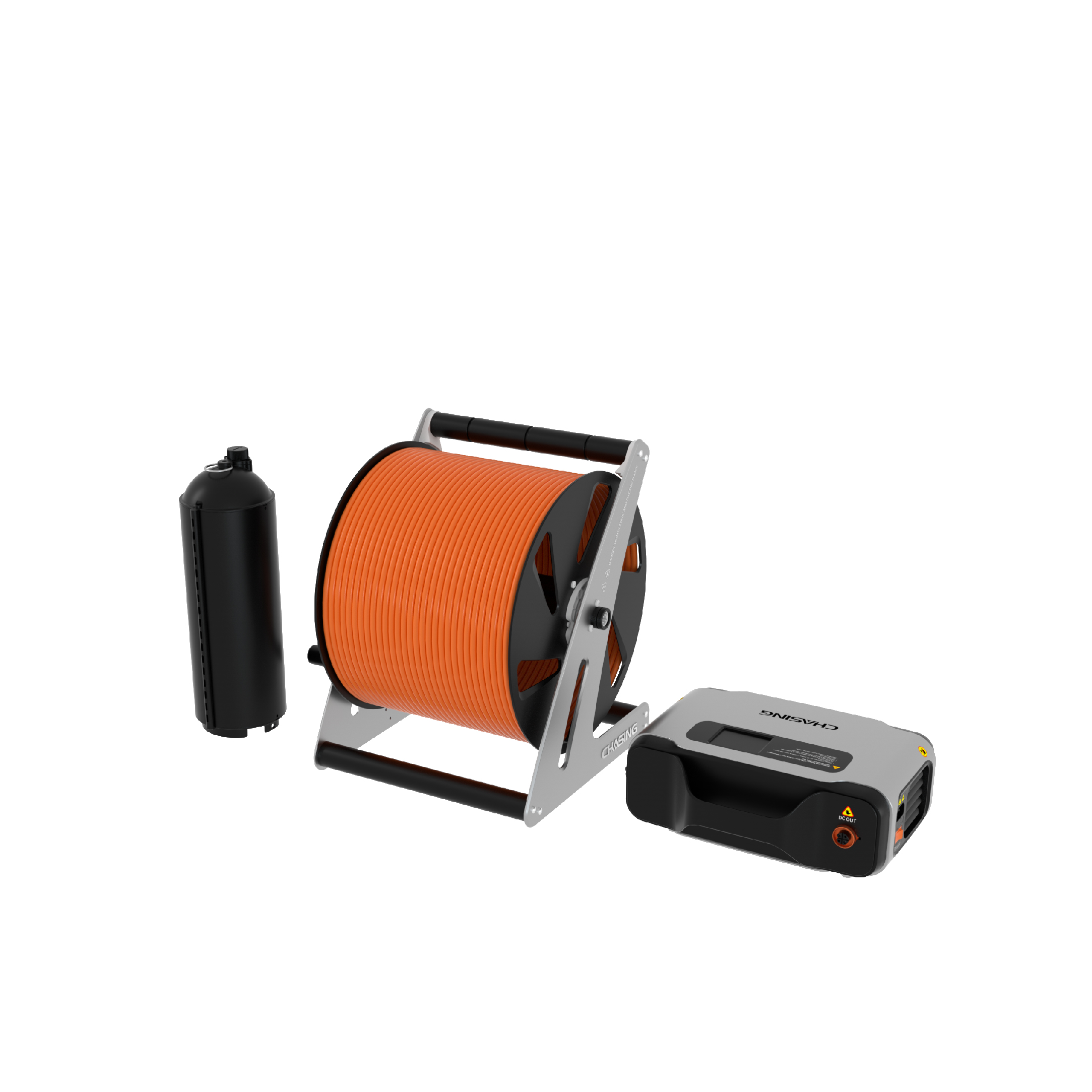

CHASING Shore-Based Power Supply System

The CHASING Shore-Based Power Supply System (C-SPSS) is a high-performance solution designed to provide continuous power to the CHASING M2 Pro Max ROV. This system allows for non-stop operations by delivering a steady and reliable power supply, ensuring that the ROV can perform extended underwater missions without interruption.

Key Features: CHASING Shore-Based Power Supply System (C-SPSS) for M2 Pro Max

• Continuous Operation: Enables 24/7 operation of the M2 Pro Max ROV by providing a consistent power source, eliminating the need for frequent battery changes and enhancing operational efficiency.
• High Power Output: Equipped with a maximum output power of 1,500W, the C-SPSS supports the ROV’s full power demands, ensuring optimal performance even during extended use.

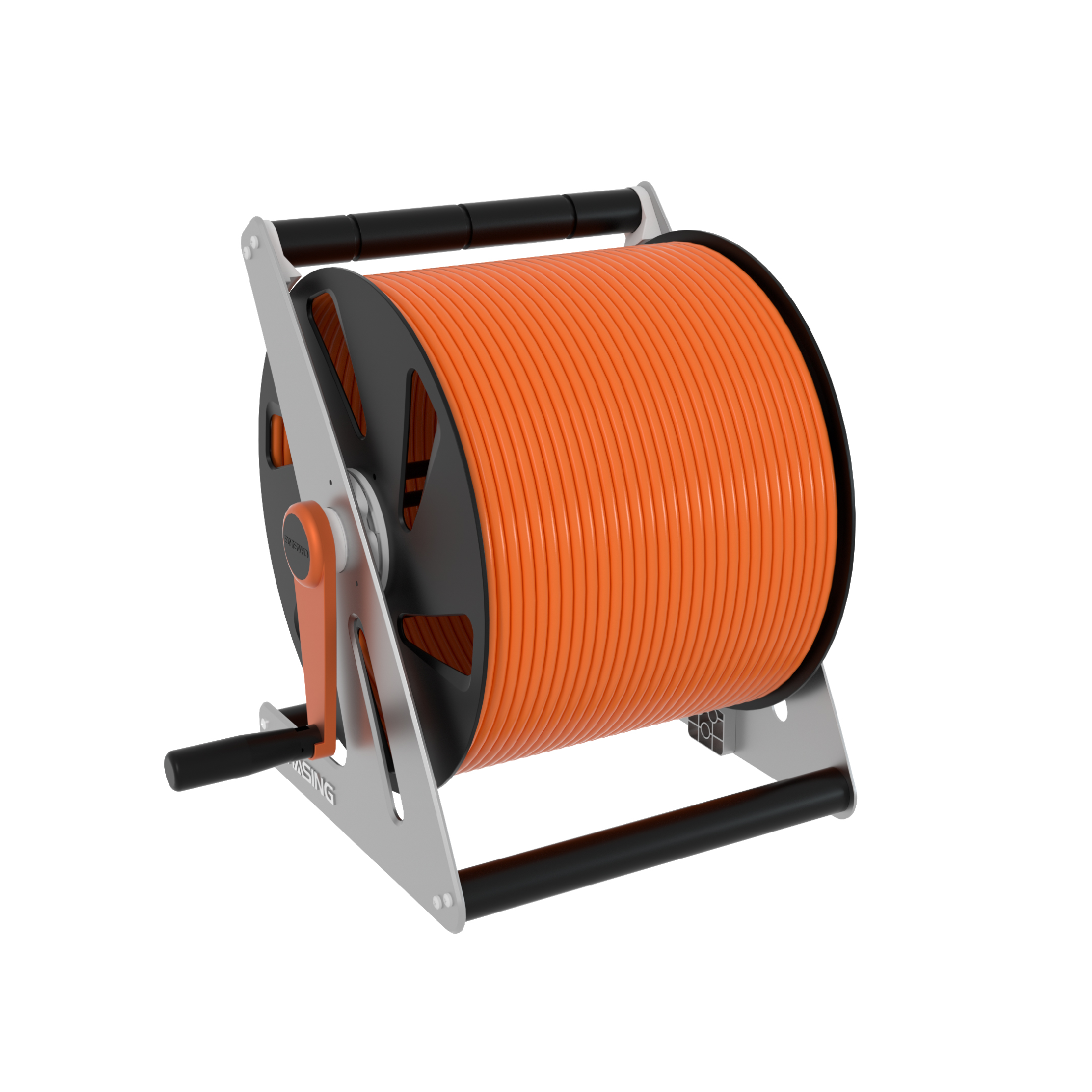

• Long-Distance Power Supply: Comes with a 200-meter cable, allowing for flexible placement and extensive reach, making it suitable for a wide range of operational environments and applications.
• Multiple Protection Systems: Features integrated safety mechanisms to protect both the system and users during operation. These safeguards include over-voltage protection, short-circuit prevention, and temperature monitoring.
• Versatile Power Input: Operates on standard AC current from 240V power supply or generators, providing flexibility in various deployment settings.
• Temperature Resilience: Designed to function effectively within a temperature range of -10°C to +50°C, ensuring reliability in diverse environmental conditions.
• Efficient and Easy to Store: The C-SPSS is designed for efficient operation with a compact form factor for easy storage and transportation.

Technical Specifications:

• Input Voltage: 490VDC
• Input Current: 3.3A Max
• Output Voltage: 24VDC
• Output Current: 60A Max
• Maximum Power Output: 1,500W @ 110V ~ 490VDC
• Maximum Power Output (Alternative Input): 2,000W @ 220V ~
• Operating Temperature Range: -10°C to +50°C
• Cable Length: 200 meters

Applications

The CHASING Shore-Based Power Supply System is ideal for scientific exploration, environmental protection, water conservancy and hydropower inspection, hull and dock inspection, and emergency rescue operations. It provides a reliable power source for extended underwater tasks, enhancing the effectiveness and efficiency of the M2 Pro Max ROV in various industrial and research scenarios.
