CHASING Ping 360 Pro Max Self‑Assembly Kit

Description

The CHASING Ping 360 Pro Max Self‑Assembly Kit provides everything you need to mount and connect the BlueRobotics Ping360 mechanical scanning sonar to your CHASING M2 Pro Max ROV. Designed for professional underwater applications, this kit delivers a secure, tool‑free installation that stands up to deep‑sea conditions.

The CHASING Ping 360 Pro Max Self‑Assembly Kit Key Features

Complete Self‑Assembly Solution
Includes all brackets, modules, and cables required for on‑site assembly—no additional parts needed.

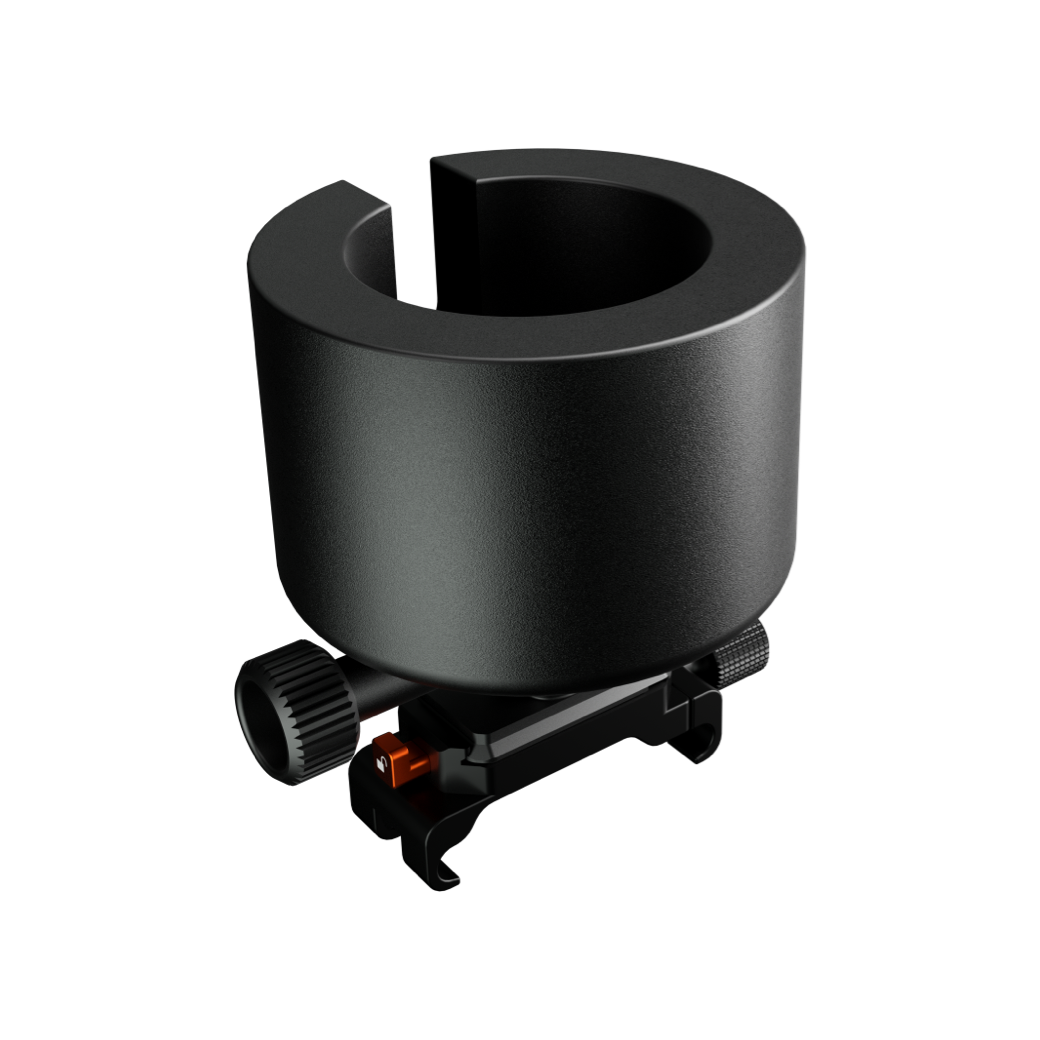

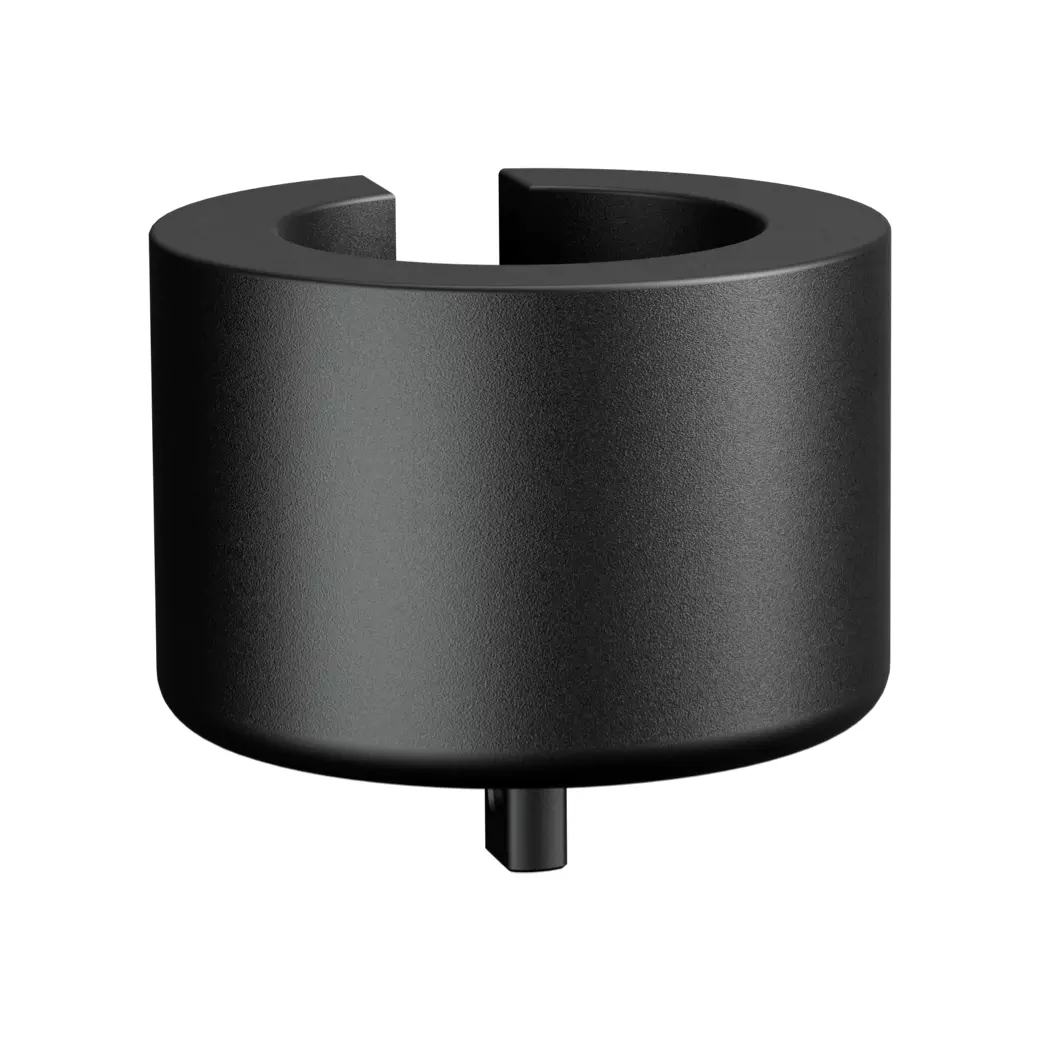

Precision Mounting Bracket
Custom‑designed aluminum alloy bracket fits the M2 Pro Max frame perfectly, ensuring stable, vibration‑free operation.

Quick‑Release Holder
Tool‑free clamp lets you attach or detach the sonar head in seconds, streamlining deployment and recovery.

Durable, Lightweight Construction
Aluminum alloy and foamed PVC materials combine strength and lightness, minimizing added weight on your ROV.

Deep‑Water Rating
Engineered to withstand pressures at depths up to 300 meters, so you can scan the seabed with confidence.

Operational Range & Conditions
Optimized for use in water temperatures from 0 °C to 30 °C and supports sonar scan distances from 0.75 m to 50 m.

The CHASING Ping 360 Pro Max Self‑Assembly Kit Technical Specifications

Mounting Assembly Dimensions: 124 × 104 × 167 mm
Weight: 763.3 g
Structural Materials: Aluminum alloy and foamed PVC
Maximum Operating Depth: 300 m
Temperature Range: 0 °C to 30 °C
Supported Scan Range: 0.75 m to 50 m

Package Contents

• Tether Module Assembly × 1

• CHASING Ping360 Sonar Mounting Bracket × 1

• Mounting Screw × 1

• Ping360 Connection Cable × 1

• Sonar Reform Package (Gift) × 1

• Documentation Pack × 1
